Electric Heating Boiler
The electric heating boiler primarily uses electricity as an energy source, generating heat through electric heating elements for heating, air conditioning, or sanitary hot water. The main components include the shell cylinder, shell head, and installation tubes for electric heating elements. If peak and off-peak electricity storage is utilized, operating costs will decrease significantly, and the investment in this part can be recovered in about two years.
The product operates with low nitrogen emissions, is environmentally friendly, and is easy to install.

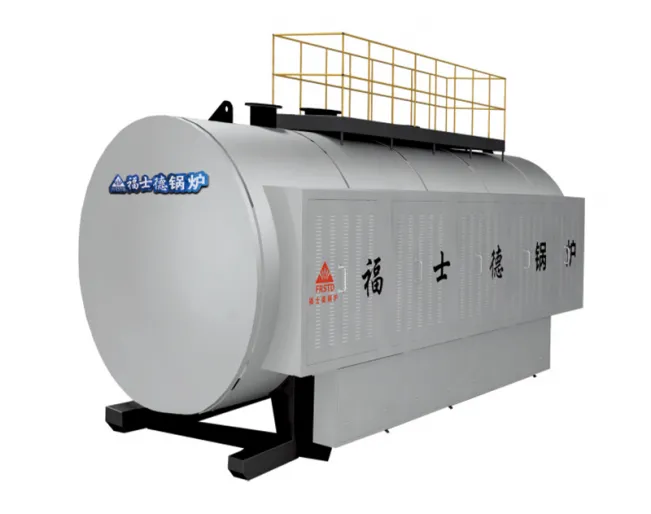

Electric Hot Water Boiler
The electric hot water boiler mainly consists of a temperature control system, temperature sensors, electric heating elements, circulation pumps, and inlet/outlet valves. It has a thermal efficiency of over 99%, is environmentally friendly, and operates fully automatically.
The design features stepwise loading or unloading, balancing load adjustments, which effectively protects the heating elements and reduces the impact on the power grid, extending the service life. The first elements to be put into use are the first to be disconnected, ensuring even lifespans of the heating elements and automatic switching. The design separates water and electricity, ensuring safety and reliability. The heating elements can be manually engaged or stopped, providing flexibility for the user.
High-quality electrical components are used to ensure stable operation and a long service life.
The heating elements are made of high-quality stainless steel, with advanced manufacturing processes and reliable quality, ensuring a service life of more than 10,000 hours. The heating elements connect to the boiler via flanges, and the heating element sleeves are seamless steel tubes, providing high pressure resistance, reliable operation, and the ability to replace heating elements without draining the water, making maintenance convenient and energy-saving.
Small-capacity electric hot water boilers use an integrated design, making installation easy. Large-capacity electric hot water boilers use GGD control cabinets with a separated design from the boiler body, ensuring that the electrical components operate in a normal environment.
The boiler controller uses a full Chinese display with a graphical user interface, showing rich operational statuses. Users can view real-time boiler operation information through the display. The boiler temperature is continuously adjustable and can be set arbitrarily according to requirements. The system features time control functionality, allowing users to set the operating times for each day of the week, with automatic start and stop times. It also includes a password protection function to ensure normal operation without external interference.
The control system is equipped with comprehensive self-protection functions. In the event of serious faults, the system will sound an alarm and take protective measures, ensuring safe and reliable operation.
The outer shell is packaged with color-coated sheets, making it aesthetically pleasing, elegant, durable, and a common choice for industrial-grade packaging materials.
The entire unit is delivered ready-to-install, with an attractive appearance and easy installation.
