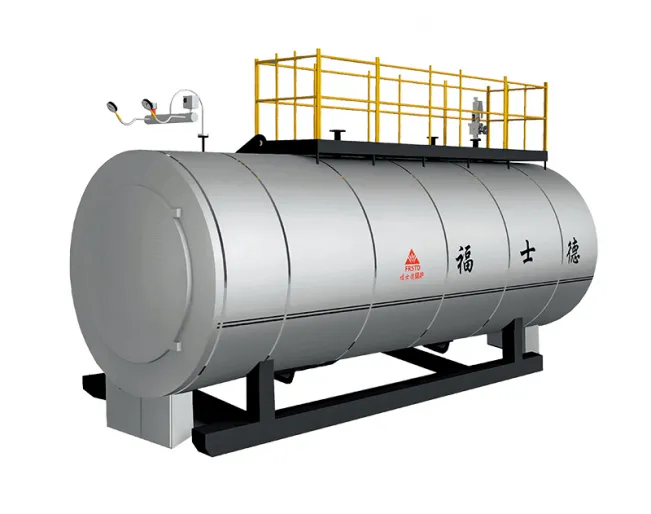

Our Electric Steam Boiler is a type of boiler that generates steam using electrical energy as the heating source instead of traditional fuels like coal, oil, or natural gas. These boilers use electrical resistance elements to convert electrical energy directly into heat, which is then transferred to the water to produce steam. Electric steam boilers are increasingly popular for applications where a clean, efficient, and easy-to-operate boiler is required.
Advantages of Electric Steam Boilers
1. Electric Steam Boiler Product Overview The electric steam boiler primarily
uses electricity as an energy source, generating heat through electric heating
elements for heating and providing sanitary hot water.
2. Simple Installation and Eco-Friendly The product is easy to install and is
a low-nitrogen, environmentally friendly solution.
3. Stepwise Load Adjustment Design It features a stepwise loading or
unloading design, balancing load adjustments, which effectively protects the
heating elements and reduces the impact on the power grid, extending the service
life.
4. High-Quality Electrical Components Electrical components are sourced from
reputable domestic and International Brand brands, ensuring stable operation and
long service life.
5. Advanced Heating Tubes The heating tubes are made of high-quality Incoloy
800-based alloy material using German technology, with advanced manufacturing
processes and reliable quality, ensuring a long product lifespan.
6. Customizable Special Electric Boilers Customizable special electric
boilers (such as 660V 3-phase electric heating boilers) use custom
high-pressure-resistant heating tubes and electrical components, making them
safer and suitable for industrial, mining heating, and special environments
requiring hot air.
7. Chinese-Language Display Controller The boiler controller uses a full
Chinese display with a graphical user interface, showing rich operational
statuses, and includes password protection to ensure the boiler runs normally
without external interference.
8. Comprehensive Self-Protection Functionality The control system is equipped
with comprehensive self-protection functions.
9. Aesthetic and Durable Exterior The outer shell is packaged with
International Brand color-coated sheets, making it aesthetically pleasing,
elegant, durable, and rust-resistant—a common choice for industrial-grade
packaging materials.
10. Convenient Installation The boiler is delivered as a complete unit, with
an attractive appearance and easy installation.
How an Electric Steam Boiler Works?
Electric Heating Elements:
Electric steam boilers use electric heating elements, often made of stainless steel or other heat-conducting materials, to generate heat. These elements are immersed in water and, when electricity is passed through them, they heat the water.
Water Tank/Boiler Chamber:
The water is stored in a chamber, usually made of steel, where it is heated by the electric elements. As the water heats up, it eventually turns into steam, which is then used for various applications.
Steam Generation:
The electrical energy is converted into heat by the heating elements. This heat is absorbed by the water, causing it to boil and generate steam. The steam is then directed to the desired location or system for use in industrial processes, heating, or other applications.
Control Panel:
Modern electric steam boilers come with an advanced control panel that allows the user to monitor and adjust the boiler's temperature, pressure, and steam output. It also includes safety features such as pressure relief valves, temperature sensors, and automatic shut-off systems to prevent overheating.
Steam Output:
Once the water has turned into steam, it is collected in a steam drum or directly directed to the application requiring the steam. The steam can be used for heating, sterilization, or power generation, depending on the industry.
Are electric steam boilers efficient?
Yes, electric steam boilers are generally considered highly efficient, especially when compared to traditional fuel-fired boilers.
1. High Conversion Efficiency
Electric steam boilers are known for their high thermal efficiency, with efficiency rates often exceeding 99%. This is because they directly convert electrical energy into heat through resistance heating elements without any intermediate steps. Unlike combustion-based boilers, there is no need for a combustion process, and virtually all the electrical energy is converted into heat for steam generation.
Fuel-fired boilers typically have thermal efficiencies between 70-90%, with energy lost in the form of flue gases and heat lost through the exhaust system. In contrast, electric steam boilers do not experience these types of energy losses, contributing to their superior efficiency.
2. Minimal Heat Loss
Electric steam boilers have minimal heat loss because the heating elements are directly in contact with the water, allowing for a high rate of heat transfer. There is no need for complex heat exchangers or combustion chambers that often introduce heat losses in traditional systems.
In traditional systems, heat can be lost in the form of flue gas, stack emissions, or unburned fuel, which further reduces overall efficiency.
3. No Need for Fuel Combustion
Since electric steam boilers do not rely on burning fuel (such as natural gas, oil, or coal), they do not produce waste gases or byproducts. This makes them more environmentally friendly and efficient in terms of converting energy into steam without the inefficiencies of combustion.
4. On-Demand Heating
Electric steam boilers can rapidly adjust their output according to demand, providing on-demand steam without significant losses. This means that they don’t waste energy when full capacity isn't required, and they can be switched off immediately when not needed.
Traditional boilers, on the other hand, may require a long warm-up time and can be less efficient when operating at partial load, leading to greater energy consumption.
5. No Flue Gas or Exhaust Systems
Electric steam boilers do not have flue gas systems, chimneys, or exhaust pipes that result in heat losses or maintenance costs. Traditional combustion-based boilers often require complex venting systems to expel hot gases, which represents an energy loss. The absence of these systems in electric boilers contributes to their high efficiency.
6. Low Maintenance
Electric boilers have fewer moving parts compared to fuel-fired boilers. There’s no need to maintain fuel pumps, burners, or exhaust systems, which often require regular cleaning, inspection, and maintenance. The simplicity of an electric boiler reduces maintenance costs and ensures that the unit operates at peak efficiency over a longer period.
Regular maintenance on combustion-based systems often leads to small inefficiencies creeping in over time, further reducing their overall performance.
7. Environmental Benefits
Electric steam boilers are considered more environmentally friendly because they do not release harmful emissions, such as carbon dioxide (CO₂), nitrogen oxides (NOx), or sulfur dioxide (SO₂). This can lead to significant savings in emissions-related costs and also contribute to energy efficiency goals for industries trying to reduce their carbon footprint.
Electric steam boilers offer an efficient, environmentally friendly, and compact solution for steam generation, especially in applications requiring low to medium steam output. Our electric steam boilers are highly suitable for industries like pharmaceuticals, food processing, and laundries, as well as heating applications in buildings. However, the high initial cost and reliance on electricity can be drawbacks, particularly in areas where electricity is expensive or unreliable. For smaller-scale, clean, and efficient steam generation, electric steam boilers present a strong alternative to traditional fuel-based boilers.
